Activated carbon is at the heart of many large industrial purification systems, yet not every carbon grade behaves the same when it comes to pressure drop and flow stability. In real projects, many engineers discover that an unsuitable particle size, mesh range, or bed design can turn a well-intentioned media choice into a persistent pressure problem that affects pumps, blowers, and overall plant reliability.
In an industrial context, pressure drop is the measurable difference in pressure between the inlet and the outlet of an activated carbon bed at a given flow rate. From an operator's perspective, this simple number tells you how hard your pumps or blowers are working just to move water, air, or gas through the media layer. High or rapidly increasing pressure drop is often the first sign that something is wrong with the media choice, upstream pretreatment, or operating conditions.
In large water treatment filters, gas scrubbers, or solvent recovery units, even a small increase in pressure drop can translate into higher energy consumption, unstable flow to downstream equipment, and more frequent shutdowns for backwash or media replacement. For a manufacturer and exporter like Guangdong Tongke Activated Carbon Co., Ltd., these pressure behaviours are not a side issue; they are a core part of how a carbon grade performs in real installations.
From a process engineer's viewpoint, the most fundamental driver of pressure drop is particle size and its distribution across the bed. Finer particles pack more tightly and create smaller void spaces, which increase resistance to fluid flow through the carbon layer. Coarser particles provide larger flow channels and lower resistance, but with different adsorption dynamics.
Industry practice often describes activated carbon by mesh size ranges:
- Coarse particles (for example, 4×8 or 8×16 mesh) offer low resistance and are common in high-flow water or gas systems.
- Medium particles (such as 12×30 or 20×40 mesh) balance contact efficiency and acceptable pressure drop.
- Fine particles (30×60 mesh and above) provide high adsorption precision but significantly higher pressure drop in deep beds.
In many large systems, pressure problems emerge when a fine or medium mesh grade is used where a coarser grade was required, or when the mesh distribution is not tightly controlled. A small shift towards more fines in the same nominal grade can noticeably increase resistance and shorten operating run time before cleaning or change-out.

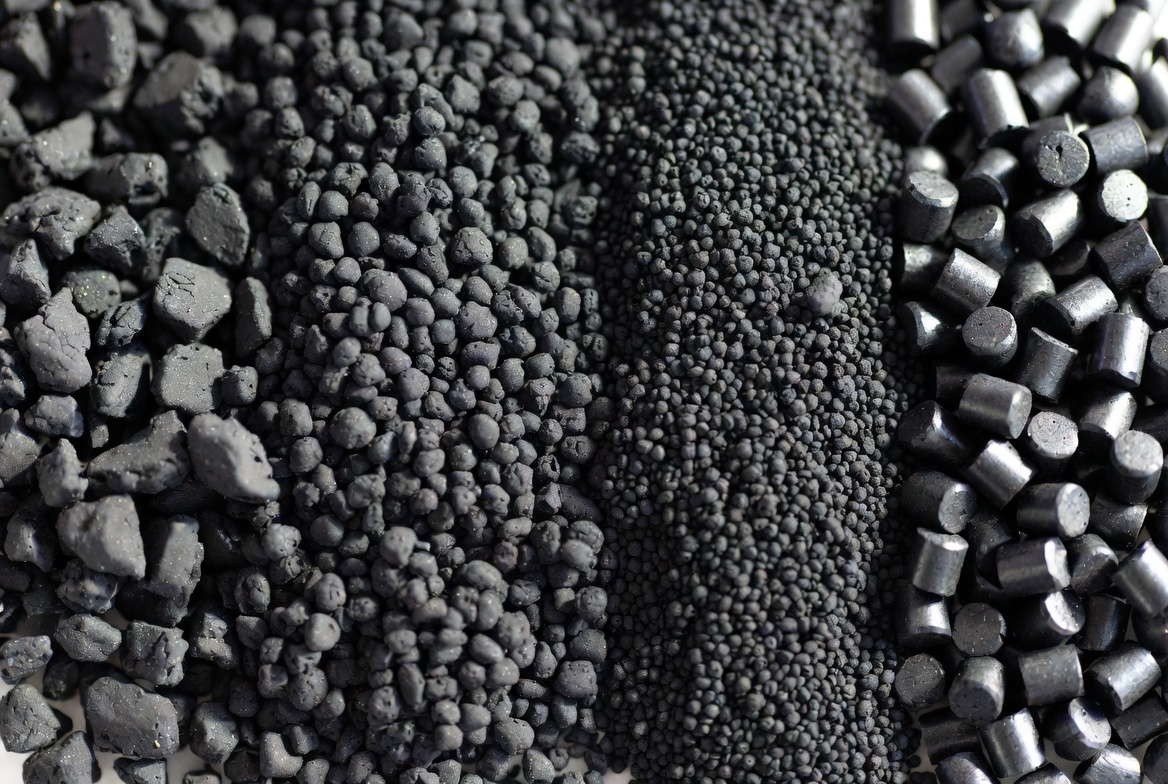

Different physical forms of activated carbon behave very differently in terms of pressure drop:
- Powdered activated carbon (PAC) has extremely fine particles and is usually dosed as a slurry, not packed into deep fixed beds, because fixed beds of PAC experience very high resistance.
- Granular activated carbon (GAC) uses irregular granules in specified mesh ranges and is widely used in water, wastewater, and some gas-phase systems.
- Extruded or pelletized carbon is shaped into cylinders, offering stable bed structures and relatively low pressure drop in gas applications.
- Spherical activated carbon uses uniform spheres to maximize bed porosity, typically giving very low pressure drop at comparable flow rates.
From an industrial practitioner's experience, problems often arise when a deep bed of relatively fine GAC is asked to handle high flow rates: the combination of small particles, bed depth, and velocity pushes pressure drop beyond the original design expectations.
To illustrate the differences, it is useful to compare several typical forms as they are used in large water, air, and gas treatment systems.
| Activated carbon form | Typical particle size / mesh | Relative pressure drop in large fixed beds | Typical large-system applications |
|---|---|---|---|
| Powdered activated carbon (PAC) | Fine powders, often > 80 mesh | High in packed beds; more manageable in slurry dosing | Short-term water treatment, polishing steps, emergency dosing |
| Granular activated carbon (GAC) | 4×8, 8×16, 12×40, 20×50 mesh ranges | Moderate to high, depending on mesh range and bed depth | Municipal water, industrial water, VOC treatment, odor control |
| Extruded / pelletized carbon | Pellets around 1–4 mm diameter | Low to moderate, especially in gas-phase service | Solvent recovery, flue gas treatment, industrial air cleaning |
| Spherical activated carbon | Spheres typically 0.5–4 mm | Low, with very stable bed permeability | High-precision gas and liquid systems, specialty purification |
From a system designer's standpoint, the key message is that the same removal target can often be met using different carbon forms, with very different consequences for pressure behaviour and energy demand. Selecting media purely based on adsorption capacity while ignoring its hydraulic or aerodynamic characteristics is one of the most common pathways to chronic pressure issues.
Even when the carbon grade is appropriate, operating conditions can gradually turn a reasonable pressure profile into a persistent operational challenge. In large installations, three factors are especially influential:
- Flow rate and face velocity
As flow increases through the bed, pressure drop does not grow in a linear way; it often rises sharply beyond certain velocities, particularly in deeper beds. Many plants run higher flows than originally specified, which can push the media beyond its comfortable operating window.
- Fluid properties
Viscosity, temperature, and the presence of suspended or dissolved solids all affect how easily fluids pass through the bed. Warm, clean water behaves very differently from cold, viscous liquids or particle-laden wastewater.
- System start–stop behaviour and hydraulic shocks
Frequent start–stop cycles, sudden valve closures, or pump ramp-ups can compact the bed, disturb layering, and generate fines that migrate and accumulate in high-resistance zones.
Viewed from a plant manager's chair, pressure drop problems often show up months after commissioning, when flows have changed, feedwater quality has shifted, or operating teams have adopted new cleaning practices.

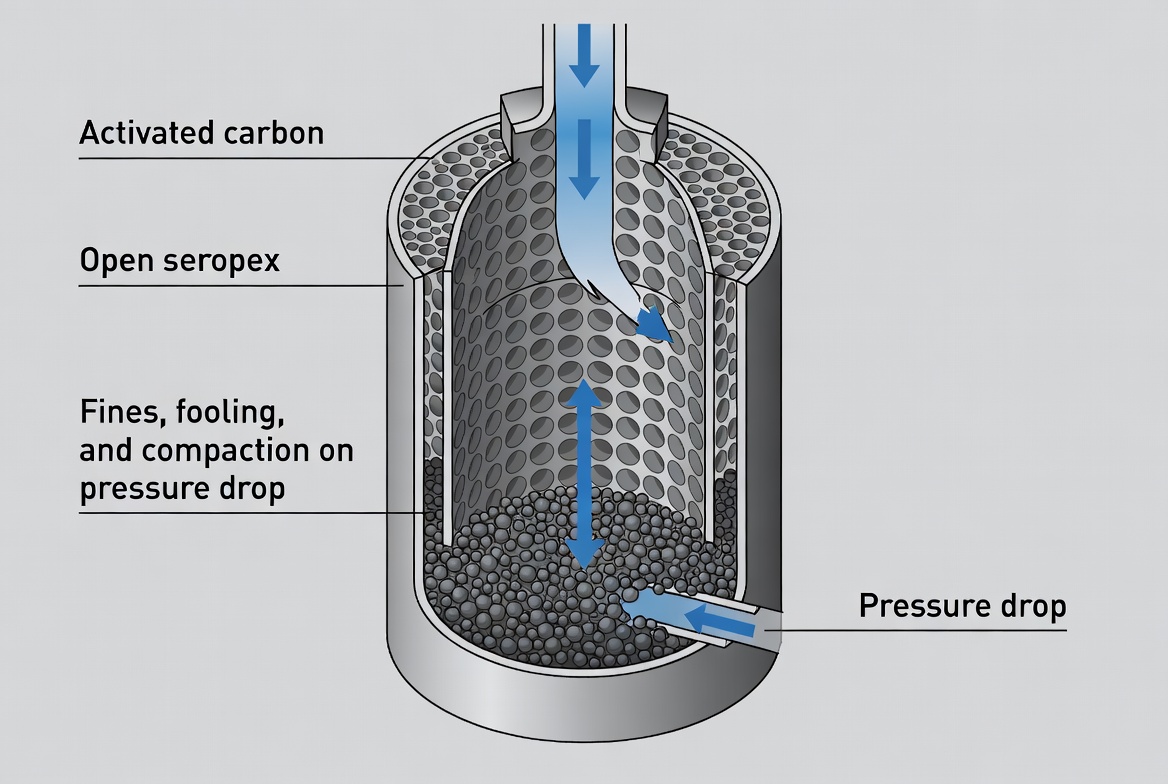

All granular media, including activated carbon, generates some level of fines during transport, loading, and operation. In tall vessels and high-flow systems, this dust and fine fraction tends to migrate downwards, gradually forming dense layers with very small void spaces. The result is a localized zone of high resistance near the bottom of the bed, even if the bulk media still looks acceptable from the top.
In practice, the problem is more pronounced when:
- The carbon has lower mechanical hardness and is more prone to abrasion.
- There are repeated flow reversals, hydraulic shocks, or vibration.
- No proper pre-rinsing or initial backwashing is carried out after loading.
Upstream solids and organic matter can transform a well-designed carbon bed into a partially blocked filter. Suspended solids, corrosion products, scaling, and microorganisms accumulate in the upper layers of the bed, creating an extra filtration barrier on top of the adsorption function.
Over time, this leads to:
- Higher differential pressure for the same flow rate.
- Uneven flow distribution and preferential channels.
- Reduced effective bed depth, because only a portion of the bed is fully utilised.
From an industry expert's perspective, when activated carbon is used as both a filtration and adsorption media without adequate pretreatment, the pressure constraints of the system can become more critical than the adsorption capacity of the carbon itself.
Gravity, long-term flow, and mechanical shocks can cause the carbon bed to settle and compact, especially with finer mesh ranges. Compaction reduces bed height and void space, promoting channeling, where fluid bypasses large sections of the media through narrow, low-resistance paths. Counterintuitively, this can produce both high overall pressure drop and poor utilisation of the carbon at the same time.
Experienced operators watch for tell-tale signs such as:
- Significant drop in bed height without media loss.
- Steep pressure gradient across a small portion of the bed.
- Uneven outlet quality or sudden breakthrough events.
From a technical standpoint, there is a natural tension between adsorption performance and pressure behaviour. Finer particles improve adsorption kinetics and reduce the bed depth required to reach a given removal efficiency, but they increase resistance and energy demand. Coarser particles provide better hydraulic performance at the cost of slightly slower mass transfer.
In system design and media selection, the goal is not to minimize pressure drop at all costs but to keep it within a sustainable, predictable range over the full operating cycle of the carbon bed. This usually involves:
- Defining a maximum allowable pressure drop across the bed that the pumps or blowers can handle.
- Choosing a mesh range and media form that remain within this limit at the expected flow.
- Allowing for fouling and compaction over time by including a realistic safety margin.
In export-oriented projects, this balance is especially important because the media must perform reliably under different local conditions, from municipal water plants in one region to complex chemical processes in another, often without continuous on-site technical support.

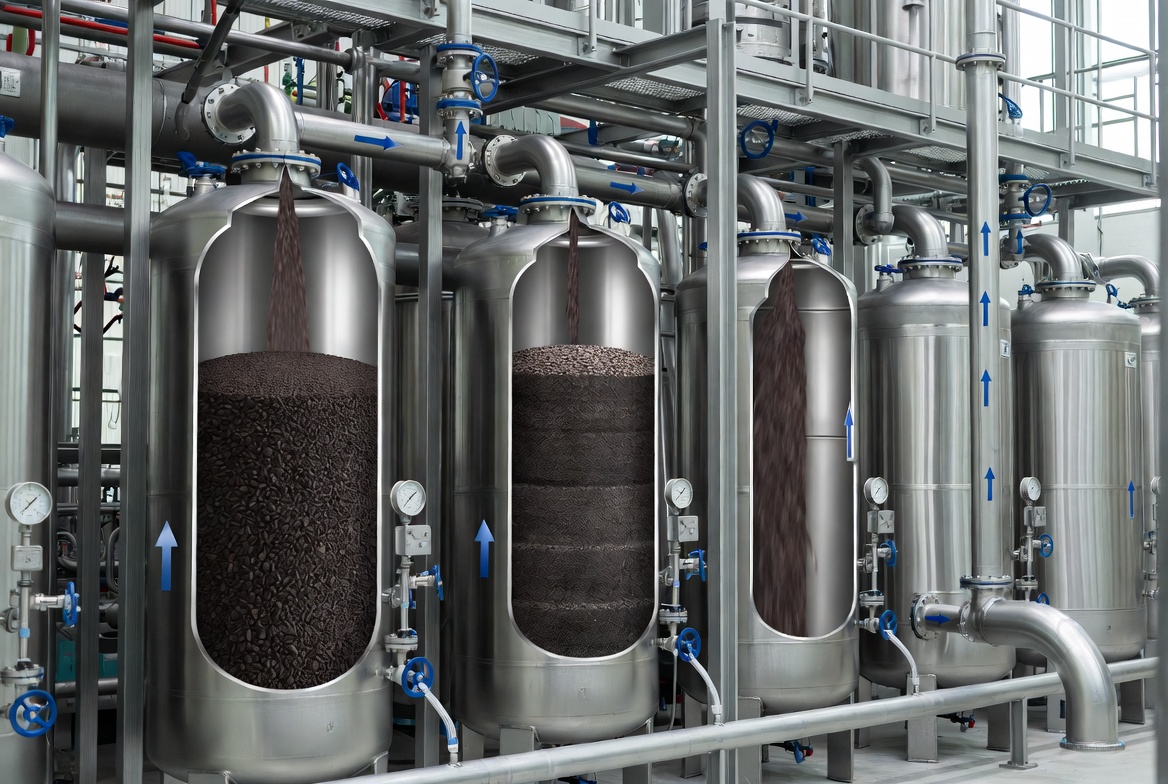

Consider two typical large systems that use activated carbon from a manufacturer like Guangdong Tongke Activated Carbon Co., Ltd.:
- A municipal water treatment filter using 12×40 mesh GAC in deep gravity filters.
Here, operators care about stable flow through the filter, repeated backwash cycles, and low head loss across multiple cells. Fine mesh carbon could improve organics removal but would quickly lead to excessive head loss and shorter filter runs between backwashes.
- A gas-phase VOC treatment system using pelletized carbon in horizontal vessels.
For this unit, maintaining blower efficiency and keeping pressure drop within fan design limits is fundamental. Pellets or spherical media with a controlled size distribution keep resistance low while providing sufficient bed depth and contact time for VOC capture.
Looking at these two cases side by side, it becomes clear why some activated carbon grades that perform very well in compact gas cartridges may not be suitable for tall water filters, and vice versa. Each system requires a different balance between adsorption performance and pressure tolerance.
For plant designers, operators, and procurement teams, a structured approach helps prevent pressure surprises later in the project.
- Identify whether the system handles water, wastewater, air, process gas, or mixed phases.
- Clarify contaminant types, concentrations, and expected fluctuations.
- Consider temperature, viscosity, and the presence of suspended solids or aerosols.
- Use coarser GAC for high-flow water systems where low head loss is critical.
- Choose pelletized or spherical carbons for high-volume gas streams needing stable pressure behaviour.
- Reserve very fine mesh ranges or powders for polishing steps, batch treatments, or where very high adsorption kinetics justify the higher resistance.
- Calculate bed depth and vessel diameter to keep pressure drop within equipment limits.
- Avoid excessively tall beds with fine mesh media in high-velocity service.
- Provide adequate freeboard and distribution systems to minimise bed disturbance and channeling.
- Rinse or backwash new carbon thoroughly before placing the system into full service.
- Ensure proper upstream pretreatment to remove large solids and reduce organic fouling.
- Implement regular monitoring of differential pressure and adjust maintenance intervals based on real data.
- Share real flow scenarios, contamination profiles, and equipment constraints.
- Ask for particle size distribution curves, hardness data, and typical pressure drop ranges.
- Consider trial runs or pilot tests when transitioning to a new media type or mesh range.
A specialist manufacturer that focuses on industrial applications can help bridge the gap between theoretical media properties and on-site performance. In practice, this support often includes:
- Providing customized mesh ranges and blends to match a client's pressure and performance targets.
- Offering application-specific grades for water treatment, air and gas purification, food and beverage, chemical processing, and pharmaceutical production.
- Supporting system designers and integrators with data on pressure behaviour, particle size distribution, and recommended loading and backwash procedures.
By aligning media properties with actual field conditions, projects can significantly reduce the risk that an otherwise high-quality activated carbon will behave poorly in terms of pressure drop once installed in a large system.
Pressure drop is influenced not only by adsorption but also by fouling, fines generation, and bed compaction. Even when the carbon still has remaining capacity, accumulated solids, biological growth, and mechanical settling can reduce bed porosity and increase resistance. Regular backwashing or media regrading is often required to restore an acceptable pressure profile.
Finer mesh carbons improve adsorption kinetics and can reduce the bed depth required for a given removal rate, but they also increase pressure drop and energy consumption. In large systems, the ideal choice is usually the smallest particle size that still allows sustainable flow and reasonable pressure behaviour, rather than the finest mesh available.
A practical approach is to compare differential pressure across different sections of the system. If pressure is normal up to the vessel inlet but increases sharply across the carbon bed, the media or its condition is the main suspect. If pressure rises before the bed, upstream filters, strainers, or pipework may be the cause.
Backwashing helps remove accumulated solids, re-suspend and reclassify the carbon grains, and reduce compaction. When correctly designed and operated, it can significantly extend the period during which pressure drop remains within an acceptable range. However, overly aggressive backwashing can also increase fines generation, so parameters should be optimised, not maximised.
If pressure problems persist despite adequate pretreatment, proper backwashing, and stable operating conditions, it may indicate that the current mesh range or media form is not suited to the system's flow and pressure constraints. At that stage, it is worth reviewing alternative grades, often moving towards a slightly coarser mesh or a different physical form to gain better hydraulic performance without compromising treatment goals.
