Activated carbon for air and gas treatment
Activated carbon can be used in its pure state to remove organic contaminants from air and gases, or impregnated to retain gaseous contaminants not retained by a standard activated carbon, these carbons are chemically impregnated, for
acid gases, organic vapors, mercury vapors, ammonia vapors and low molecular weight amines.
Chemically modified activated carbons complement the natural functions not covered by a conventional activated carbon to retain other compounds. This enhances the neutralization and adsorption of an activated carbon.
|
Types of Activated Carbon for Air & Gas Applications
Coconut Shell Activated Carbon: Eco friendly and highly porous, this carbon is perfect for air purification.
Coal Activated Carbon: Common in pollution control, coal based carbon efficiently adsorbs pollutants, especially VOCs.
Activated Carbon Powder and Pellets: Powdered carbon suits precision applications, while pellets excel in large scale air filtration.

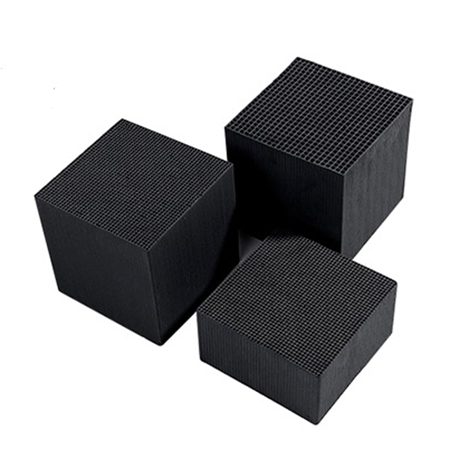

Honeycomb activated carbon : A high efficiency extruded honeycomb activated carbon, specially formulated to remove VOCs from biogas streams in high humid conditions.
|
Air Purification Activated Carbon specification
Index | Model No. | |||
TKFQ04 | TKFQ07 | TKFQ09 | TKFQ10 | |
C.T.C（wt.%） | / | ≥40 | ≥50 | ≥60 |
Iodine (mg/g) | ≥400 | ≥700 | ≥900 | ≥1000 |
Moisture content % | ≤5 | ≤5 | ≤5 | ≤5 |
Bulk density | 480-550 | 480-550 | 480-550 | 480-550 |
Hardness(%) | ≥90 | ≥98 | ≥98 | ≥98 |
particle size | Ø4.0 /6.0/8.0mm | Ø2.0/ 4.0 /5.0mm 6-12/4-8 mesh | Ø2.0/ 4.0 /5.0mm 6-12/4-8 mesh | Ø2.0/ 4.0 /5.0mm 6-12/4-8 mesh |
|

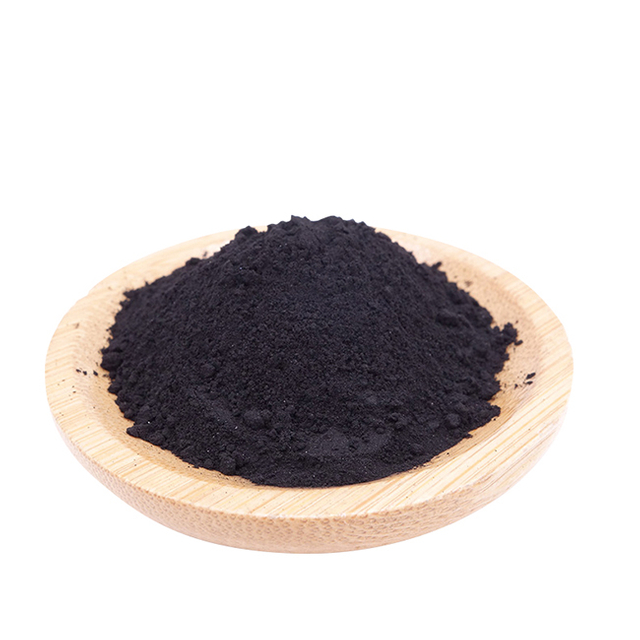

Activated Carbon for Waste Incineration
Selected high-quality coal and wood as raw material is refined, can effectively deal with large amounts of air pollutants produced during incineration. (especially for reduce Dioxins)
Index | Model No. | |
TKLJH10 | TKLJ07 | |
Iodine mg/g | 900-1000 | 600-800 |
Moisture content % | 5-10 | 5-10 |
Bulk density | 400-450 | 500-600 |
particle size | 200,325 mesh | 200,325 mesh |
|
Applications of Air & Gas Activated Carbon
Waste Incineration Flue Gas Treatment
Flue gases from waste incineration contain multiple toxic and hazardous substances. Direct emission poses serious risks to the environment and human health. Thanks to its high specific surface area and strong adsorption capacity, activated carbon serves as a key material in flue gas purification systems, enabling efficient emission reduction.
Tongke’s activated carbon effectively removes Pollutants like Dioxins, acid gases, volatile organic compounds (VOCs), heavy metal vapors
Waste Landfill Gas Treatment
Hazardous waste landfills release sulfur/nitrogen compounds, VOCs, and odorous gases during long-term storage. These gases feature complex composition, fluctuating concentrations, and significant toxicity. Activated carbon, with its broad-spectrum adsorption capacity and potential for surface modification, provides an efficient solution for landfill gas purification, simultaneously addressing pollutant removal and odor control.
Tongke’s activated carbon effectively removes pollutants like Odorous substances, toxic VOCs, greenhouse gases, heavy metal vapors
Specialized Gas-Phase Carbon for Livestock Farming
Activated carbon is vital in livestock farming for treating both gaseous and liquid streams. In gas-phase applications, it primarily purifies ventilation exhaust from animal housing and biogas by adsorbing odorous gases like NH₃ and H₂S, as well as VOCs.
Agricultural Waste Gas Treatment
In the pesticide industry, activated carbon addresses complex challenges of high-toxicity, multi-component pollutants through process innovation and functional modification. Driven by the "New Pollutant Treatment Action Plan," the technology is evolving towards precision adsorption and low-carbon regeneration, supporting the industry's green transition.
We supply high-efficiency extruded activated carbon (EAC) and powder activated carbon (PAC )to remove Pollutants like VOCs, acid gases, odorous substances, particulate matter, high-toxicity compounds
Air Purifiers
As indoor decoration pollution and airborne particulate issues become increasingly prominent, activated carbon filters have emerged as a core component in modern air purification systems, with their adsorption performance directly determining purification efficiency and user health.
Indoor pollutants often from Indoor renovation pollutants (formaldehyde, benzene series), household air purification, airborne particulates (PM2.5, pollen), pet odors (organic amines, sulfides).
Activated carbon help remove indoor pollutants like Formaldehyde, benzene series, cooking fumes, TVOC, room odor molecules, bacteria, and microorganisms.
Refrigerator Deodorizing
Odors and microbial growth caused by food spoilage and humid environments pose key health risks in refrigerators. Activated carbon modules address these issues through efficient adsorption and antimicrobial functions.
Odor Generation Sources often be Food spoilage (ethylene, hydrogen sulfide, amines), mold growth due to high humidity in cold environments .
Activated carbon help to remove Pollutants like H₂S, amines, microbial spores, ethylene.
Activated Carbon for Kitchen Fume/ smoke Purification
Activated carbon modules,integrated with catalytic technology, efficiently purify high-temperature cooking fumes containing carcinogens like PAHs to reduce indoor air pollution.
The kitchen smoke generation source often be High-temperature cooking fumes(PM2.5, PAHs), gas combustion exhaust (CO, NOx).
Tongke supply special pellet activated carbon to remove Pollutants PM2.5,PAHs, CO, Nitrogen Oxides, Burnt odors in kitchen fume/ smoke
Activated carbon filter sheet for Pet Odor-Control Mats/Beds
Modified activated carbon combined with bio-enzyme technology rapidly adsorbs and decomposes odors caused by pet waste and bacterial growth.
The odor often Generate from Pet excrement(ammonia, mercaptans), body odor, bacteria.
Tongke supply high-efficiency activated carbon filter sheet to remove Pollutants as NH₃,H₂S, microorganisms, urine residues.
Laboratory Ventilation Systems
The waste gas often Generated from Chemical reagent volatilization, experimental exhaust gases, disinfectant residues, equipment emissions
Activated carbon help to remove Pollutants like Heavy metal vapors, radioactive iodine (I-131), VOCs, acidic/alkaline gases, odors & disinfection by-products, microbial metabolites
Gas treatment in Petrochemical Production
In petrochemical processes, activated carbon with its developed porosity and superior adsorption capacity is widely used for exhaust treatment, solvent recovery, wastewater purification, and feedstock refining. It effectively removes VOCs, H₂S, and SO₂, while improving wastewater quality and reducing odors, helping meet stringent environmental standards.
Feed Gas Purification
Generation Sources like Natural gas,extraction, crude oil processing, syngas from coal chemical industry
Activated carbon help to remove Pollutants like Sulfur compounds,acid gases, heavy metals & mercury vapor, VOCs

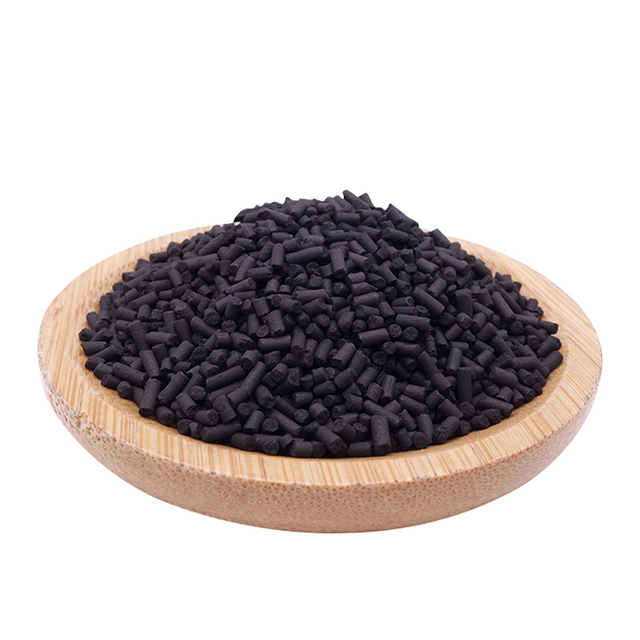

Desulfurization in Refining
Generation Sources from FCC units, hydrotreating units, gasoline stabilizers & LPG treatment, sour water stripper off-gas
Activated carbon help to remove Pollutants like Organic sulfur compounds, inorganic sulfides, complex sulfur pollutants
Gas-Phase Carbon for Rubber & Tire Industry
Activated carbon is primarily used for pollutant adsorption and emission reduction in environmental management within the rubber and tire industry.
The waste gas often generated from xixing process, calendering & extrusion, vulcanization, rubber compound storage & transfer, waste rubber treatment
Tongke supply high-efficiency extruded coals based pelleted activated carbon to remove Benzene, toluene, SO₂, H₂S, alcohols, NH₃, PAHs
