Activated carbon fibers (ACF)
Activated carbon fibers (ACF) also call activated carbon cloth are porous adsorption materials made of organic fibers (such as viscose, polyacrylonitrile, or bitumen) that are converted into a highly porous carbon structure through heat treatment and activation. Unlike powdered or granulated activated carbon, ACF fibers are produced with a diameter of nanometers to micrometers. This fiber structure significantly increases the specific surface area and the adsorption rate.
|
Activated carbon fiber felt
Activated carbon fiber felt is made of natural or man-made fibers carbonized at low temperature and activated at high temperature.The high efficient adsorption material of activated carbon contains highly developed microporous structure, with large specific surface area, high adsorption and desorption capacity, fast adsorption and desorption speed, and good purification effect. Under simple conditions, it can be completely desorbed.
Model No. | TK-1000 | TK-1300 | TK-1500 | TK-1600 | TK-2000 |
Surface area（㎡/g） | 900-1000 | 1150-1250 | 1300-1400 | 1450-1550 | 1800-2000 |
Benzene adsorption value（w t%） | 30-35 | 38-43 | 45-50 | 53-58 | 70-80 |
Iodine value（mg/g） | 850-900 | 1100-1200 | 1300-1400 | 1400-1500 | 1700-1800 |
MBL（ml/g） | 150 | 180 | 220 | 250 | 300 |
Pore capacity(ml/g) | 0.8—1.2 | ||||
Average Pore diameter （A。） | 17—20 | ||||
PH | 5—7 | ||||
Ignition point （℃） | ﹥500 | ||||
|
Activated Carbon Foam
Activated carbon foam also call activated carbon filter sponge is made of activated carbon on sponge substrate. Its carbon content is 40~80%, which has high adsorption capacity of activated carbon. It can be used for air purification and removal of organic compounds such as formaldehyde, toluene, hydrogen sulfide, chlorobenzene and air pollutants. The air resistance is small and energy consumption is low. It can deodorize, deodorize and purify the environment under a certain air volume, which has a good purification effect.
| Model NO. Index | Honeycomb activated carbon fiber filter SY-GAC-2001 |
Base | polyurethane foam |
Activated Carbon | Wood Based Activated Carbon |
Carbon Content | ≥50% |
Benzene adsorption | ≥22% |
Features | Easy to adjust the aperture, good ventilation, can be arbitrarily cut |
regular specifications | Size:1m*2m,1.2m*2m, Aperture:micropore (HR-20), mesopore (HR-15), macroporous (HR-10) (Corresponding to 50-15ppi) |
Thickness | 3-100㎜ |
Resistance | Gas line speed of 1.0 m / s, pressure drop ≤ 40Pa (4 mm thick hole filter test) |
|
Activated Carbon Fiber Filter
Activated carbon filter is made of high-quality activated carbon powder combined with fiber basic, has a good adsorption performance of harmful gases, particularly benzene, methanol, etc.; large adsorption capacity of bug dust, good formability, high strength, less airflow resistance
Main indexcarbon content≥40%,adsorptive rate of benzene≥20%,adsorptive rate of the carbontetrachloride≥35%,purifying rate of bug dust≥85%,airflow resistance≤80 pa.
Activated carbon fiber can be widely used in:
1 solvent recovery: Benzene, ketone, ester, petroleum can be adsorbed and recovered.
2 air purification: It can adsorb and filter the stench, body odor, flue gas, toxic gas, o3, so2, no, etc. In the air.
3 water purification: Can remove heavy metal ions, carcinogens, odors, mildew, bacteria and decolorization in water; can be used for tap water, food industry water and industrial pure water treatment;
4 environmental protection works: Exhaust gas and sewage treatment;
5 anti-virus masks, anti-virus clothing, cigarette filters, etc.;
The extraction or recovery of precious metals and the adsorption of radioactive materials can also be used as catalyst carriers and stationary phases of gas chromatography;
7 , medical use for bandages, acute antidote, artificial kidneys, etc.;
8 electronic and energy applications, such as high-capacity capacitors, batteries, etc.;
High temperature and insulation materials
Activated carbon fiber can be divided into two series according to different materials: Adhesive and polyacrylonitrile.
According to the form, there are:
Activated carbon fiber felt fiber fiber fiber cloth activated carbon fiber silk activated carbon fiber paper
|
Activated carbon nonwoven fabric

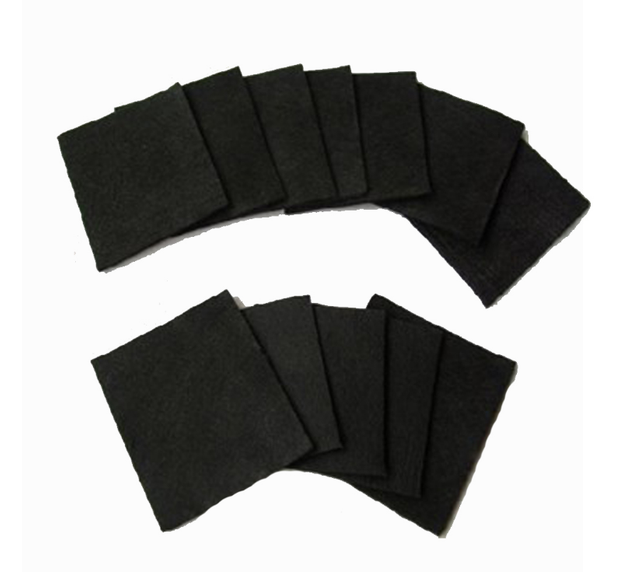

Tongke activated carbon non-woven fabric is made of ultra-fine fibre with high quality powder activated carbon impregnated . It has good adsorption performance, thin thickness, good permeability, easy to heat forming, and can effectively absorb various industrial waste gases, such as benzene, formaldehyde, ammonia, sulfur dioxide, etc. It is mainly used to make non-woven activated carbon masks, which are widely used in heavy pollution industries such as chemical industry, pharmaceutical industry, paint industry, pesticide industry, etc.
Base Material | PET Non woven |
Activated Carbon | High quality Powder activated carbon |
Carbon Content | 70-200(g/㎡) |
Benzene Adsorption | 12-30(W%) |
Width | 10cm-100cm or customized |
Length | 1500m/roll |
Gram | (30-70) g / ㎡ |
Thickness | 0.2-1.0mm |
Advantages | Thin Thickness,Good ventilation,Easy to heat and form |
|

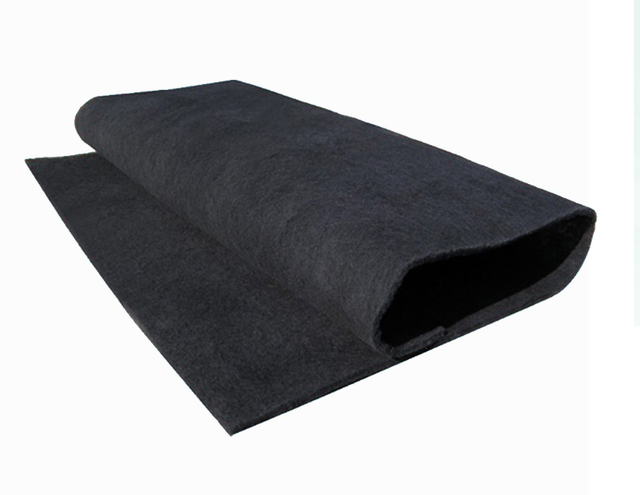

Activated carbon cloth
Activated carbon cloth is a highly porous material made of natural or synthetic fibers using high-quality powdered activated carbon as the adsorbent material. After activation treatment, these fibers increase their surface area and adsorption capacity, and are widely used in various industries, especially in the air and water filtration industry.
High Adsorption Capacity
ACC has a very high specific surface area and can adsorb various gases, chemicals, and even bacteria, making it an ideal choice for air and water purification.
Breathability And Comfort
ACC is commonly used in medical masks and protective clothing because it has good breathability, can filter harmful particles, and does not affect wearing comfort.
Customizable Form
The fabric like form of ACC makes it flexible and easy to integrate into various designs and applications, from protective clothing to filtration systems. It can be easily processed into different forms, such as sheets, rolls, and even customized cutting parts, to adapt to various applications.
|
Conclusion
Activated Carbon Sheet Products are functional sheet materials made by supporting or laminating high-quality coconut shell granular activated carbon onto nonwoven fabric or similar substrates.
These sheets are thin, flexible, and lightweight—easily cut with scissors or blades—and offer multifunctionality such as deodorization, adsorption, ventilation, and cushioning, enabling wide-ranging applications.
Welcome to contact with us for different activated carbon fibre fabric product. Our team also do at your best service.
