Activated carbon can remove iron from water, but performance depends strongly on iron form, pH, contact time, and whether oxidation and filtration are combined with the activated carbon system. In real projects, activated carbon is often used together with aeration, sand or multimedia filtration, ion exchange, or other technologies to achieve low residual iron levels for drinking water and industrial processes.[1][2][3]
Iron rarely appears in only one form, and understanding iron speciation is essential before designing an activated carbon system.[4][3]
- Ferrous iron (Fe²⁺) is dissolved, clear in water, and cannot be removed by simple mechanical filtration until it is oxidized to ferric iron.[5][6]
- Ferric iron (Fe³⁺) forms reddish‑brown particles or sludge that can be removed by filtration and can deposit on activated carbon surfaces and other media.[2][5]
- Colloidal and organic‑bound iron are very fine or complexed with organics, making removal more challenging and increasing the importance of properly chosen activated carbon and pretreatment steps.[3][7]
Activated carbon works primarily by adsorption, but iron removal often also relies on oxidation and precipitation mechanisms within or before the activated carbon bed.[7][1]
- Granular activated carbon (GAC) provides a huge internal surface area where dissolved iron and iron particles can adsorb, especially after iron is oxidized to less soluble forms.[1][2]
- In many iron removal filters, dissolved ferrous iron first oxidizes to ferric hydroxide flocs, which then accumulate and are trapped inside the activated carbon bed, so removal is a combination of oxidation, precipitation, and adsorption.[6][1]
- When oxygen levels are low, the adsorption capacity of activated carbon itself becomes more important for dissolved iron, although its capacity is limited compared with specialized ion exchange or oxidizing media.[8][1]
Several studies confirm that granular activated carbon can remove iron effectively under controlled conditions, especially when iron is oxidized and filtration conditions are optimized.[2][1]
- One groundwater study using coconut‑shell granular activated carbon achieved up to about 99% iron removal at a 7‑hour hydraulic retention time and influent iron of around 3 mg/L, with effluent iron meeting WHO drinking water guidelines.[6][1]
- Batch experiments reported maximum iron adsorption capacities on activated carbon around 0.17 mg Fe per gram of GAC under specific pH and concentration conditions, indicating that adsorption is real but not extremely high.[9][1]
- Laboratory work on Fe(II) ions shows that contact time, pH, and activated carbon dosage strongly affect removal, with optimized pH often in the acidic to near‑neutral range for efficient iron(III) adsorption.[10][8][9]
Because ferrous iron is soluble, many iron treatment systems oxidize it before the water reaches the activated carbon filter.[5][3]
- Aeration, chemical oxidants (such as chlorine or permanganate), or catalytic media can rapidly convert dissolved ferrous iron into particulate ferric iron that is easier for activated carbon filters and other media to capture.[3][5]
- Studies show that in GAC columns, the precipitation of oxidized iron within the filter can dominate removal, meaning the activated carbon bed behaves partly like a catalytic and mechanical filter in addition to an adsorbent.[1][6]
- In waters where oxygen is already high, additional aeration sometimes offers little benefit, and the GAC bed alone can achieve high iron removal if contact time and bed depth are sufficient.[6][1]
Several design and operating factors govern how well activated carbon removes iron in practice.[8][9][1]
- pH: Many iron adsorption studies report optimum pH ranges between about 3.5 and 7 for iron(III) uptake on activated carbon, with performance dropping if pH moves too far from the optimum range.[10][9]
- Contact time and bed depth: Column tests show that long empty bed contact time (for example around 7 hours) greatly improves iron removal on granular activated carbon compared with short contact times.[2][1]
- Dosage and media selection: Higher activated carbon dosage and properly sized GAC beds increase available adsorption sites, but beyond a certain point removal is limited by iron chemistry rather than carbon quantity.[9][8][1]
Engineered or modified activated carbon can greatly expand what is possible with iron and other contaminant removal.[11][12][13]
- Iron‑impregnated or catalytic activated carbon combines the porous structure of activated carbon with reactive iron compounds on the surface, improving oxidation and adsorption processes.[13][11]
- Studies on iron‑treated activated carbon show enhanced performance for contaminants like arsenate and dyes, suggesting that similar surface modifications can tune activated carbon for specific iron and co‑contaminant removal goals.[14][12][13]
- Properly designed iron‑containing activated carbon filters can provide both iron removal and broader contaminant control, but require careful quality control and monitoring to avoid leaching other metals.[11][13]

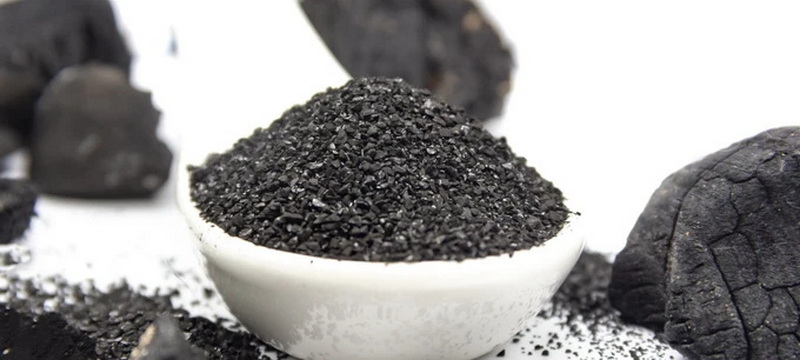

For private wells with iron staining and metallic taste, activated carbon is often part of a multi‑stage treatment system.[4][3]
- Water specialists commonly combine iron removal methods (oxidation, sediment filters, softeners, or specialty media) with activated carbon filtration to polish taste, odor, and residual organics.[5][3]
- Activated carbon alone may reduce some iron, but heavy iron problems usually need dedicated iron filters or softeners before the activated carbon stage to prevent rapid fouling and loss of capacity.[4][3]
- In many residential systems, the activated carbon filter is positioned after iron removal equipment to protect fixtures and provide high‑quality drinking water.[7][3]
Industrial users rely on activated carbon not only for iron reduction but also for simultaneous removal of organic contaminants and other metals.[15][7]
- Granular activated carbon is widely used in industrial wastewater treatment and groundwater remediation, where it can help remove iron along with heavy metals like cadmium under optimized conditions.[15][1]
- In food, beverage, and pharmaceutical production, activated carbon filters contribute to color and taste correction while also capturing trace metals and iron that could harm product quality or equipment.[7][5]
- Many industrial plants install activated carbon as a polishing step after primary iron removal, increasing overall system robustness and making it easier to meet tight discharge or process water specifications.[15][7]
Correct design of an activated carbon system is critical for stable and predictable iron removal.[1][7]
- Choosing granular activated carbon with appropriate pore structure, hardness, and particle size helps maintain good hydraulic performance and resist clogging by iron deposits.[7][1]
- Designing for adequate empty bed contact time, backwash capability, and pre‑oxidation ensures that most iron is converted and captured without excessive pressure drop or premature media replacement.[2][1]
- Periodic backwashing to remove accumulated ferric sludge and, where feasible, thermal reactivation of spent activated carbon can extend the life of the system and reduce operating cost.[1][7]
Even high‑quality activated carbon has clear limitations when used as the main iron removal technology.[16][3][4]
- Activated carbon filters are primarily optimized for organic compounds, chlorine, and taste and odor control; heavy iron loads can foul the media, reduce adsorption capacity, and increase maintenance needs.[5][7]
- Very high iron concentrations, fluctuating pH, or the presence of manganese and other metals may exceed what an activated carbon bed can manage alone, making dedicated iron and manganese filters or softeners necessary.[3][2]
- Activated carbon is not a universal solution: it must be combined with proper pre‑treatment, system design, and water analysis to ensure reliable performance and long‑term stability.[16][3]
Real‑world examples illustrate how activated carbon behaves in iron‑rich water.[17][1]
- Pharmacological research has shown that activated charcoal can adsorb ferrous sulfate at pH levels where iron is typically absorbed in the human body, with capacities exceeding 100 mg elemental iron per gram of charcoal at pH around 4.5–7.5 in controlled tests.[17]
- Groundwater treatment columns filled with granular activated carbon have achieved iron removal efficiencies above 95–99%, as long as influent iron concentrations, pH, and contact times stayed within the tested ranges.[2][1]
- At pilot scale, operators often find that activated carbon performance for iron is highly site‑specific, reinforcing the need for pilot tests and water chemistry evaluation before full‑scale installation.[8][1]
For many projects, a multi‑barrier configuration uses activated carbon in a strategic position within the treatment train.[3][7]
- A typical scheme for well or groundwater might include aeration or oxidant dosing, followed by sediment or multimedia filtration, then activated carbon for polishing and removal of organics, color, and residual taste‑ and odor‑forming compounds.[3][7]
- Where iron levels are moderate and water chemistry is favorable, a granular activated carbon filter alone may achieve guideline iron levels, but monitoring is needed to confirm performance over time.[6][1]
- In more advanced systems, iron‑modified or catalytic activated carbon can be used to combine iron removal and broader adsorption functions in a single media, but design must consider regeneration, replacement, and any co‑contaminant interactions.[13][11]
Activated carbon can remove iron from water through a combination of adsorption and filtration of oxidized iron, and properly designed granular activated carbon systems have demonstrated iron removal efficiencies above 95–99% in research and pilot studies. However, activated carbon is usually most effective as part of a multi‑stage treatment train that includes oxidation and pre‑filtration, and it is not a one‑step solution for very high or complex iron contamination, so water analysis, pilot testing, and careful system design are essential before relying on activated carbon for long‑term iron control.[16][7][1][2][3]
Standard activated carbon has limited capacity for directly adsorbing dissolved ferrous iron, so most systems rely on oxidizing Fe²⁺ to particulate Fe³⁺ before or within the activated carbon bed. Once iron is oxidized to insoluble forms, granular activated carbon can capture the resulting particles and provide additional adsorption of residual dissolved iron.[5][1][2]
Many laboratory studies report optimum iron(III) adsorption on activated carbon in the slightly acidic to near‑neutral range, often around pH 3.5–7 depending on the specific iron species and carbon surface chemistry. Outside these pH ranges, iron solubility and surface charge effects can reduce how much iron activated carbon can hold, making oxidation and alternative media more important.[10][9][8]
Activated carbon alone can reduce iron in some well waters, but high iron concentrations typically require dedicated iron removal methods such as oxidation, sedimentation, and specialty filters before the activated carbon stage. Using activated carbon as the only iron treatment in heavily contaminated wells can lead to rapid fouling, pressure drop, and frequent media replacement.[4][7][5][3]
Replacement frequency depends on iron loading, water chemistry, and system design, but iron fouling often shortens the practical life of activated carbon compared with operation in low‑iron water. Many systems rely on regular backwashing and performance monitoring, then schedule media change or thermal reactivation when iron breakthrough or excessive pressure drop is observed.[7][1]
Standard activated carbon is a highly porous adsorbent mainly optimized for organic contaminants, while iron‑modified or catalytic activated carbon includes iron compounds anchored on the carbon surface to enhance oxidation and adsorption reactions. These modified activated carbon products can improve removal of metals and metalloids (such as arsenic) and can be tailored for specific water treatment goals, but they require careful selection and validation for each project.[12][14][11][13]
